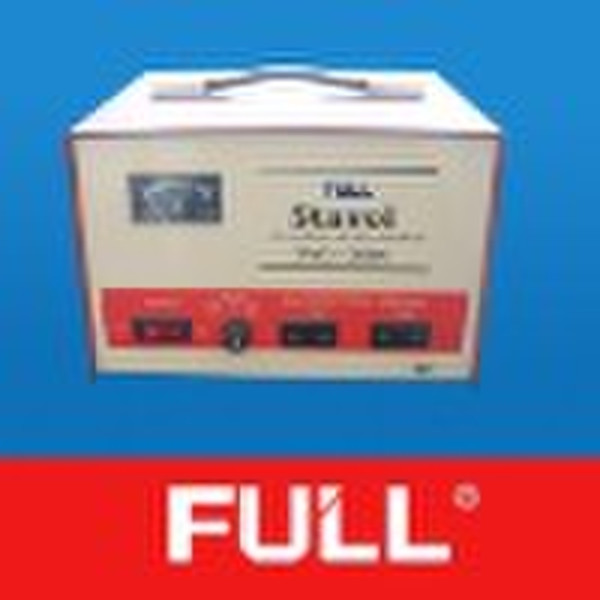

SVC voltage regulator

voltage regulator 1.Application SVC fully automatic A.C.voltage stabilizer consists of contact voltage regulator,sampling control circuit and servo motor.When input voltage or load changes,sampling control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,whichtums the arm,adjusting voltage until the output voltage is regulated into the rated output voltage. The product is of small size,light weight,less output waveform distortion and reliable performance,to guarantee its quality,foreign advanced technology and main parts are introduced and imported. It is widely used in electrical appliances which need contant voltage power supply,and in fieldss of industry producing,scientific research and medical hygiene. 2.Performance Input voltage 160V 250V 70V 130V Output voltage 220±3 with 110V±3 Phase Single phase Frequency 50/60Hz Response time Within 1 secretary against 10 input voltage deviation Effiency Better than 90% Ambient temperature -5 +40 Relative Humidity Less than 95 Waveform Distortion Non-lack fidelity in waveform
